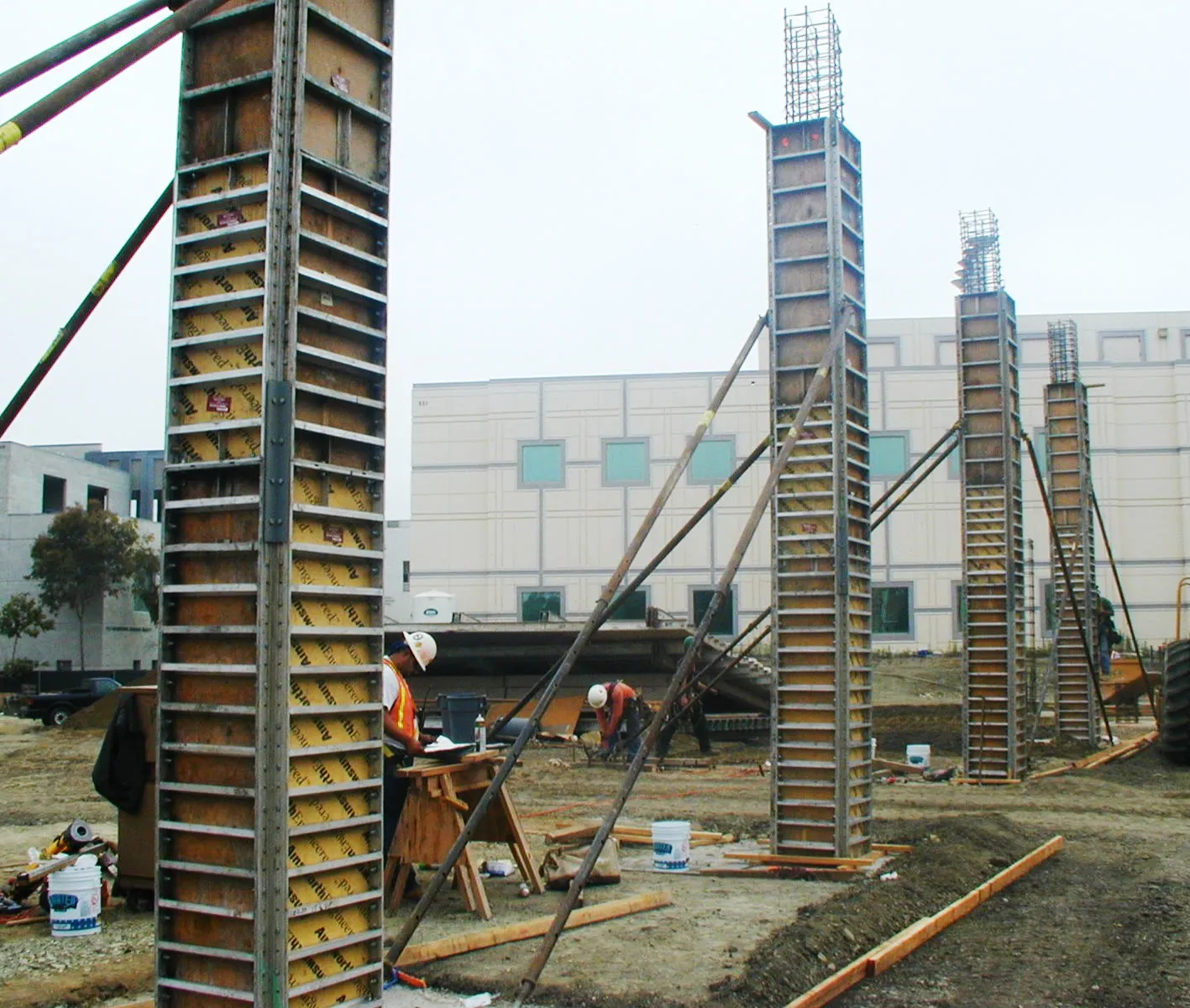

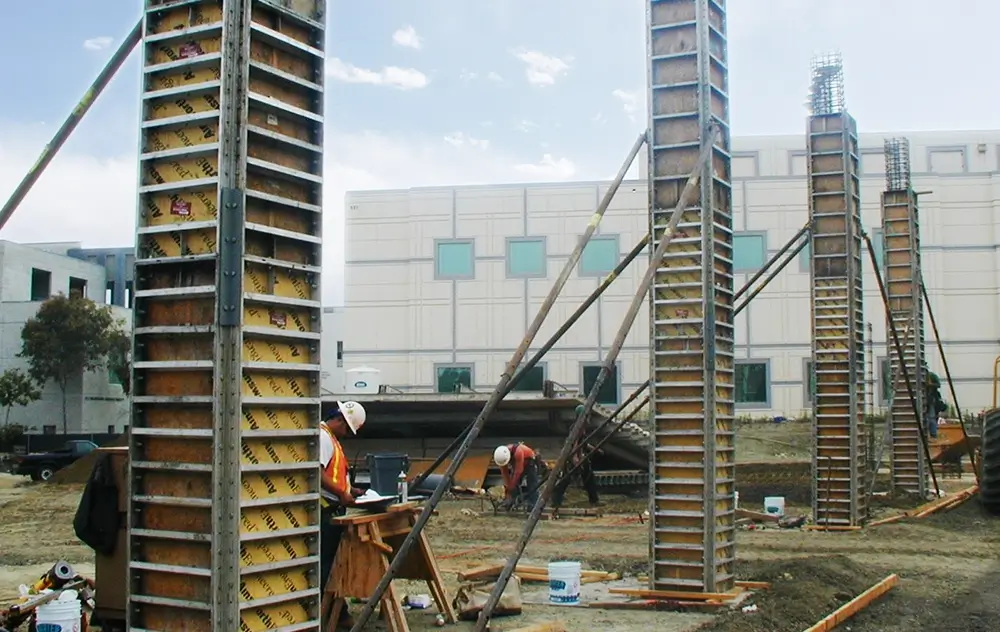

Column Forms
FORMING THE WORLD ONE SMALL PIECE AT A TIME

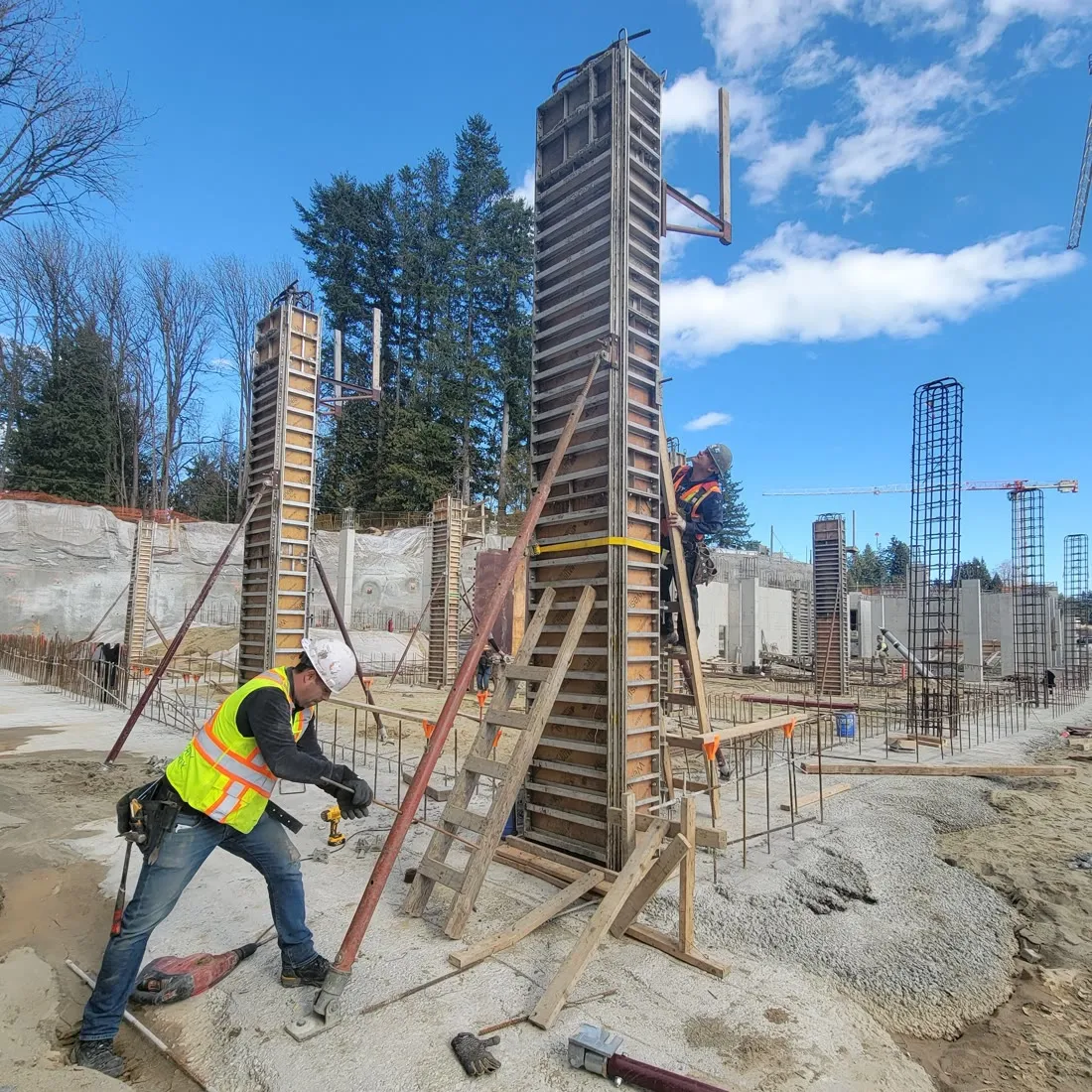

ALPAN COLUMN FORM Hand-Set Modular System

Alpan Panel Forms are modular prefabricated panels, used for forming concrete columns and walls in construction.

Highlights:

Elimination of forming lumber and plywood, as well as disposal of same at end of use
Panel frame is pre-drilled for interconnecting two or more panels
Bolt type fastening between panels provides solid connection that sustains concrete placement and vibration
A wedge clamp connection on the closing side of the column forms, makes it fast to set up the forms during construction
Hand Set System
Lightweight
65% reduction of construction time

Pre-drilled frame sides of Alpan Panels are also designed for easy attachment of accessories such as man platform, pipe braces, flat ties and similar.

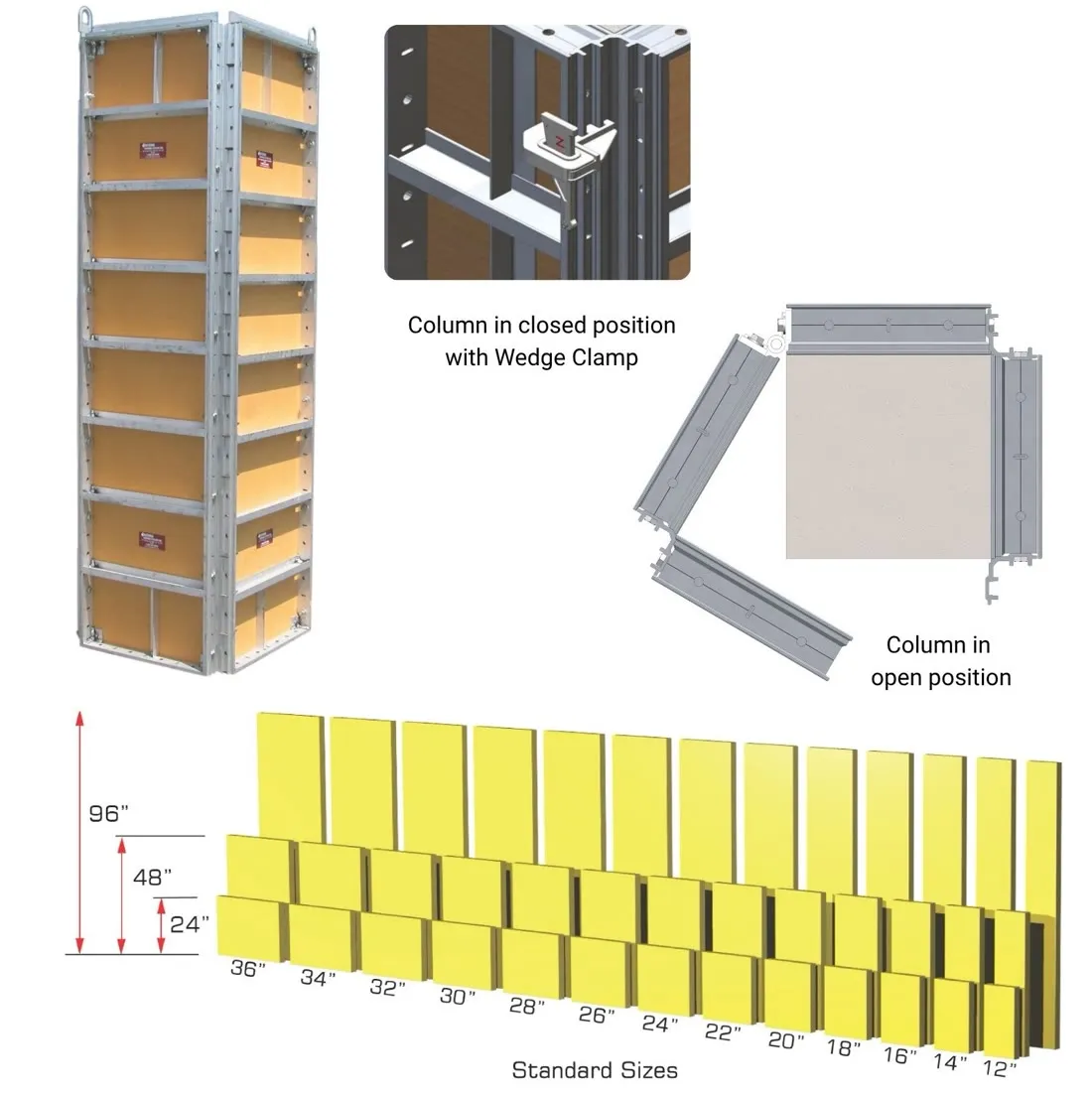

COLUMN IN CLOSED POSITION

COLUMN IN OPEN POSITION

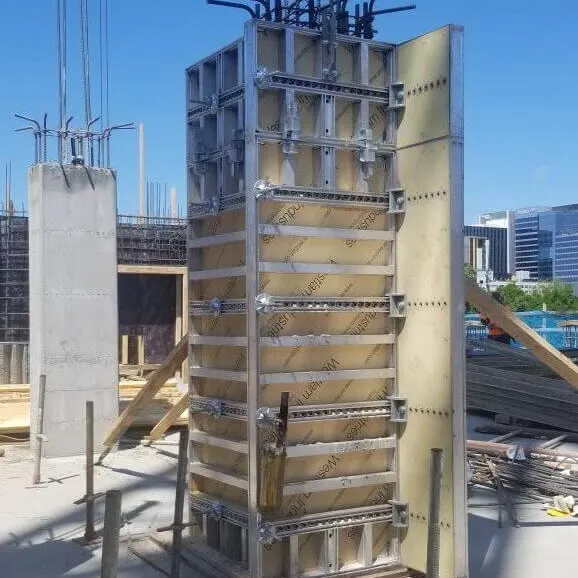

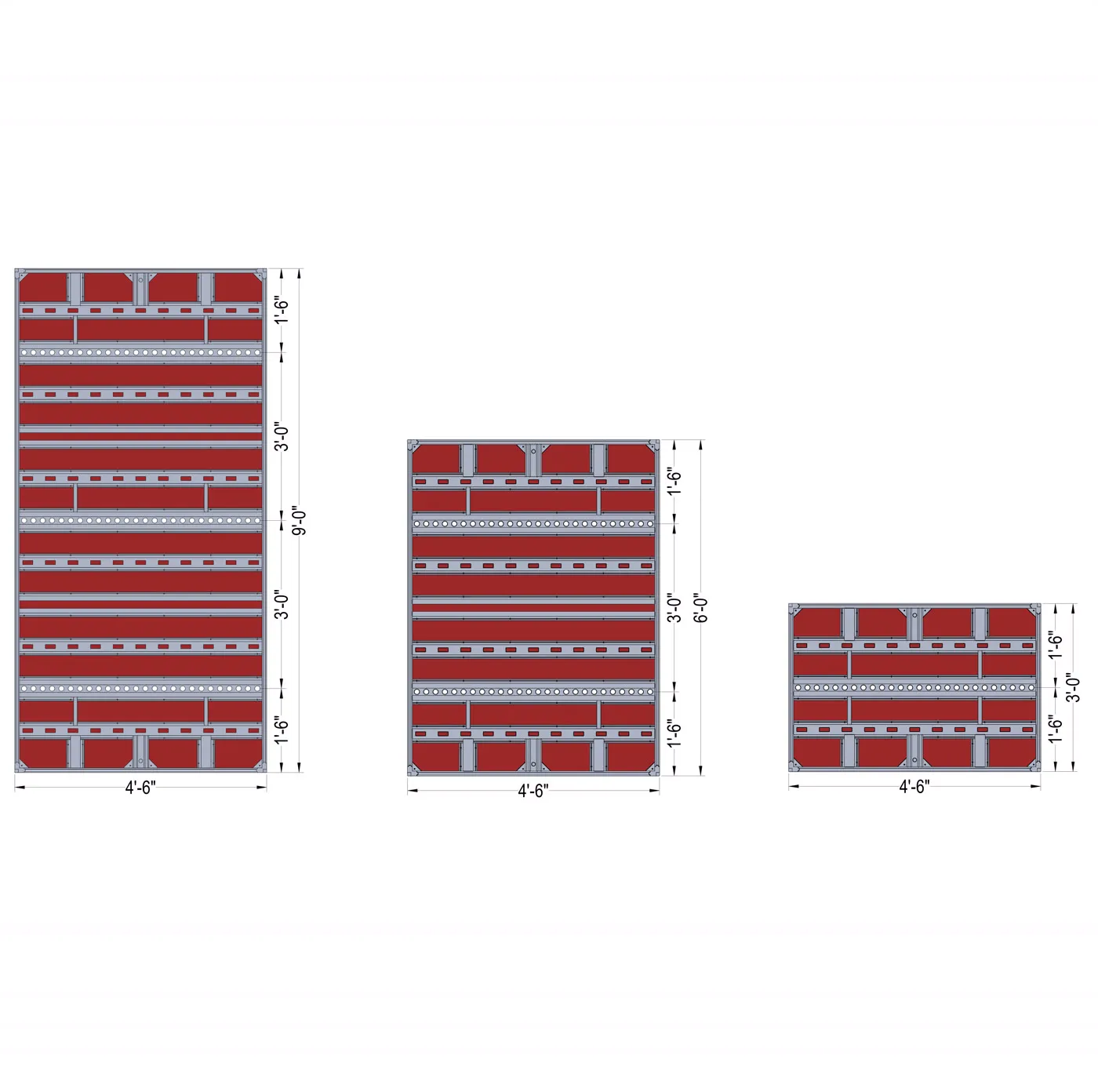

ALPAN IMPERIAL UNIVERSAL cOLUMN FORM
Hand-Set  System

With the 40 inches wide ALPAN Panels from our imperial ALPAN UNIVERSAL series, square and rectangular shaped columns can be formed.

Hand Set System
Lightweight
Column sizes up to 30″ x 30″ can be formed, in steps of 2″ increments.

ALPAN Universal Panels come in 8ft, 4ft and 2 ft height

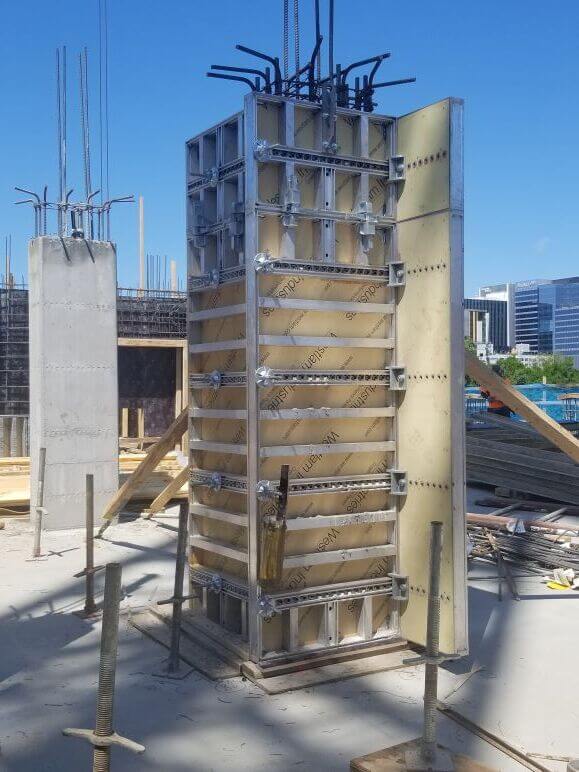

Column Assembly

working platforms for safe working conditions are available

Column Forms Accessories
